Simulation
6DOF Motion Platform

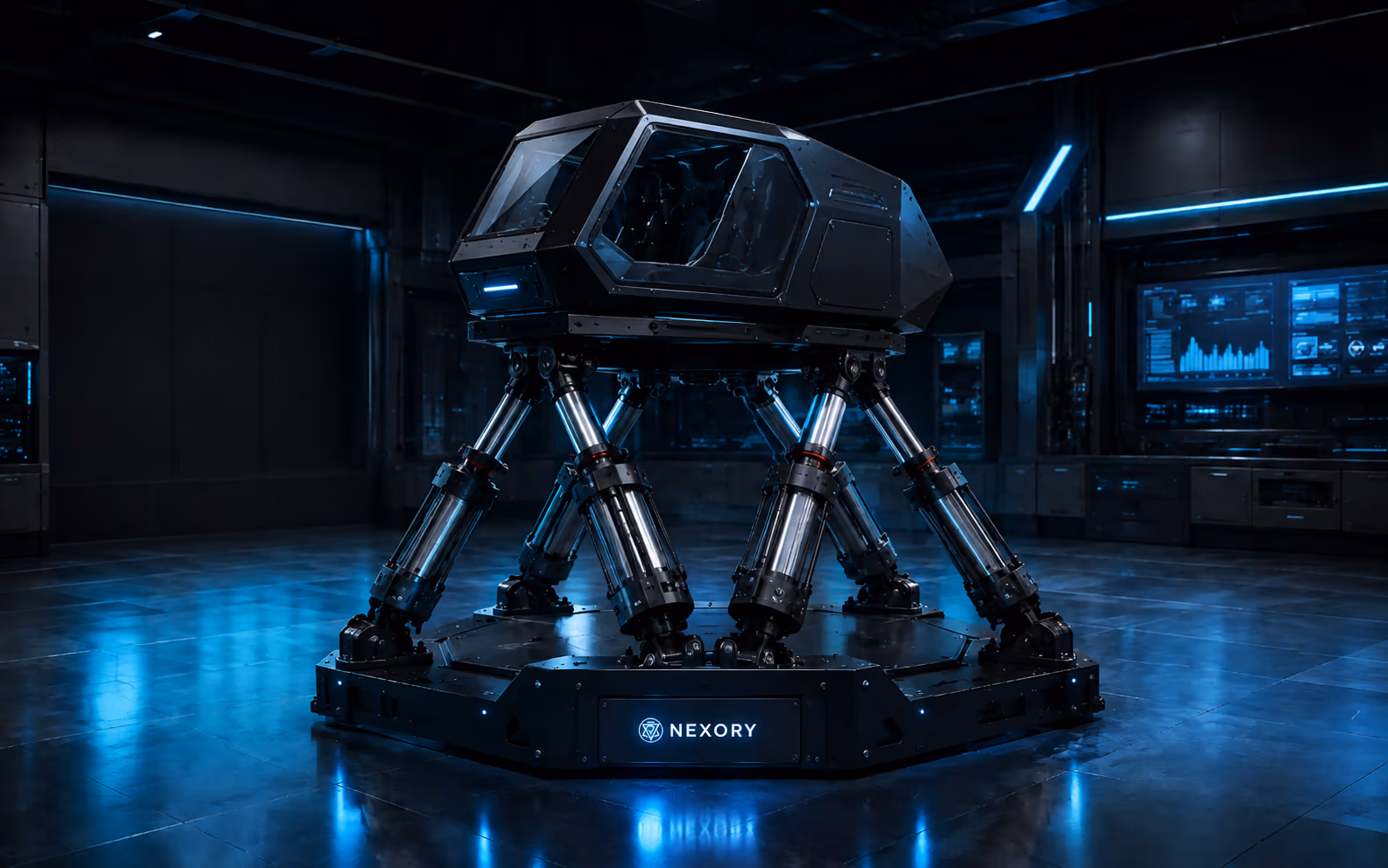

A hexapod built to be integrated, not admired.
Our reference Stewart platform. Six electric ball-screw actuators, a deterministic control core, and an open command API — designed to sit underneath someone else's cockpit, cabin or test fixture.
Specifications
- Degrees of freedom
- 6
- Payload
- 750 kg
- Surge / sway
- ±250 mm
- Heave
- ±180 mm
- Yaw
- ±22°
- Actuation
- Electric ball-screw
- Duty cycle
- Continuous
Indicative figures. Final specification is confirmed against the application at quotation.
Features
- Open command API over UDP, EtherCAT or ROS 2
- Category-3 safety circuit with dual-channel e-stop
- Regenerative drives — no hydraulic power unit
- Condition monitoring on every actuator
